Fire fighting pump

Update: 2018/9/9      View:
  • Brand:    Chinese brand or overseas brand
  • Type:    EG
  • Order Online
Introduction

Split case fire fighting pump

pump outlet diameter: 80-200mm
Capacity: 20~200L/S
Head: 0.2~2.5Mpa
Suction depth: 3.0m
Split case fire fighting pump is in full compliance with NFPA standards.
1.1 Shut off head is less than 1.4 times of the designed head.
1.2 When the capacity is 1.5 times of designed capacity, the head will be higher than 65% of the designed head.
1.3 Each pump will be made the hydraulic test before delivery in the case of the test pressure is for 1.5 times of inlet pressure plus working pressure.
1.4 Maximum test pressure can be achieved 5Mpa to meet some specific applications.
1.5 Being the structure of single stage double suction, it is easy to maintenance and assembly with lower maintenance cost.
1.6 Pump head can be up to 280m to adapt to most of fighting applications.


Technical advantage
With short supporting distance in the both ends of the pump, the pump, the pump is running smooth, low vibration and noise.
Excellent hydraulic model, high efficiency, high efficiency zone width, cavitation performance
With inlet and outlet along the same line, pipeline layout is simple, convenient and beautiful

Pump body can be installed either horizontal or vertical according to user’s site conditions.
Deep absorption can reduce the land space investment and extend the life time of pump.
No need to disassebly the the import and export pipeline, easy maintenance, low cost.

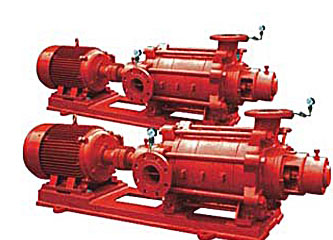

Multistage fire fighting pump set with NFPA standard

 TYPE D(D. DG. DY. DM. DF) pump belongs to single-suction, multi-stage segmental centrifugal pump.

Parameter ranges:

Capacity Q: 6~540m2/h

Head H: 33~1056m



fire fighting pump is in full compliance with NFPA standards.
1.1 Shut off head is less than 1.4 times of the designed head.
1.2 When the capacity is 1.5 times of designed capacity, the head will be higher than 65% of the designed head.
1.3 Each pump will be made the hydraulic test before delivery in the case of the test pressure is for 1.5 times of inlet pressure plus working pressure.
1.4 Maximum test pressure can be achieved 5Mpa to meet some specific applications.


Other type fire fighting pump

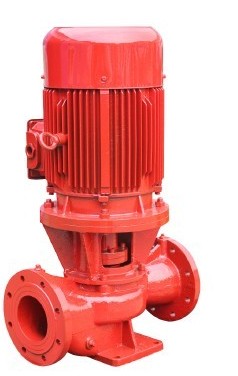

Pipe fire fighting pump

End suction fire fighting pump



Turbine fire fighting pump

The technical parameter of type turbine pump
Pump outlet diameter: 150~1000mm
Capacity: 60~8400m3/h
Head: 12~180m



Fire fighting pump is in full compliance with NFPA standards.
1.1 Shut off head is less than 1.4 times of the designed head.
1.2 When the capacity is 1.5 times of designed capacity, the head will be higher than 65% of the designed head.
1.3. Each pump will be made the hydraulic test before delivery in the case of the test pressure is for 1.5 times of inlet pressure plus working pressure.
1.4 Maximum test pressure can be achieved 5Mpa to meet some specific applications.
