Turbine fire fighting pump with NFPA standard

Update: 2018/9/9      View:
  • Brand:    PDM
  • Type:    PDMFFTB
  • Order Online
Introduction

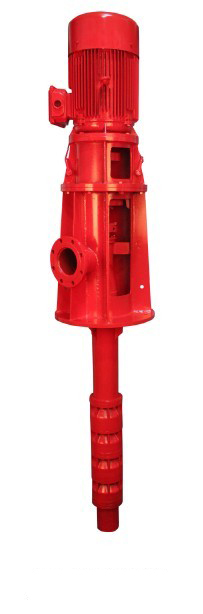

Turbine fire fighting pump

The technical parameter of type turbine pump
Pump outlet diameter: 150~1000mm
Capacity: 60~8400m3/h
Head: 12~180m



Fire fighting pump is in full compliance with NFPA standards.
1.1 Shut off head is less than 1.4 times of the designed head.
1.2 When the capacity is 1.5 times of designed capacity, the head will be higher than 65% of the designed head.
1.3. Each pump will be made the hydraulic test before delivery in the case of the test pressure is for 1.5 times of inlet pressure plus working pressure.
1.4 Maximum test pressure can be achieved 5Mpa to meet some specific applications.
